Aluminium 2017 Sheets and Plates manufacturer in Nigeria

Aluminium 2017 Sheets Dealer in Lagos, Alumnium 2017 Hot Rolled (HR) Sheet and Plates Supplier in Lagos, Al 2017 Sheets in Port Harcourt, Aluminium Alloy 2017 Plates Size Chart, Alumnium 2017 Sheet Price in Kano, Aluminium 2017 Cold Rolled (CR) Sheet Supplier in Nigeria, Aluminium 2017 Sheet Stockist in Ibadan, Aluminium 2017 Sheets and Plates Exporter in Nigeria, Al 2017 Sheet Stockist in Abuja, Alumnium Alloy 2017 Plates Supplier in Ibadan

In the heart of Nigeria’s bustling capital, Nwabali Aluminium stands as a trusted pillar for industry and construction, providing robust materials that build the nation. We are proud to offer Aluminium 2017 Sheets and Plates, a high-strength alloy chosen for demanding projects where reliability is non-negotiable. Our commitment is to supply Abuja’s builders and fabricators with products that combine exceptional durability with the versatility needed to bring ambitious visions to life, ensuring every structure and component benefits from superior quality and performance.

Aluminium 2017 is primarily composed of copper, which gives it its notable strength. This composition results in a material that is remarkably strong and hardenable through heat treatment, approaching the durability of some steels. While this great strength does mean it is less malleable than other aluminium alloys and can be more challenging to weld, it offers an outstanding strength-to-weight ratio. This makes it an excellent choice when you need a lightweight metal that doesn’t compromise on toughness and resilience under stress.

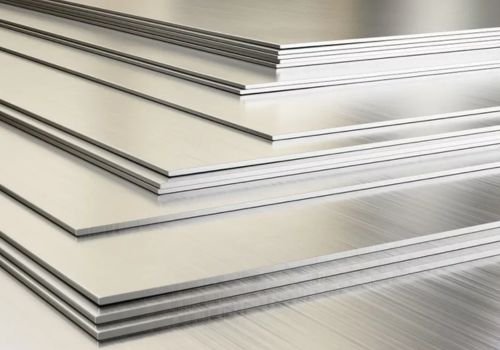

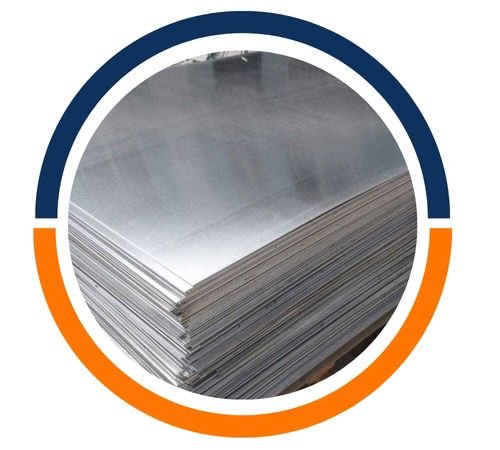

Aluminium 2017 Alloy Sheets

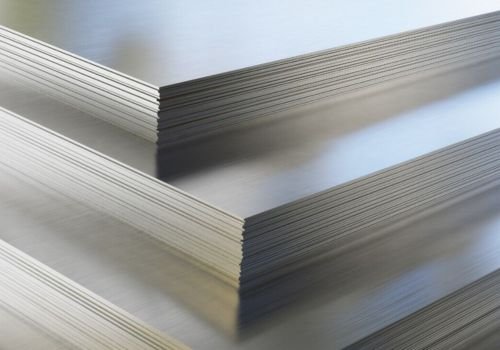

Aluminium 2017 Hot Rolled Sheets

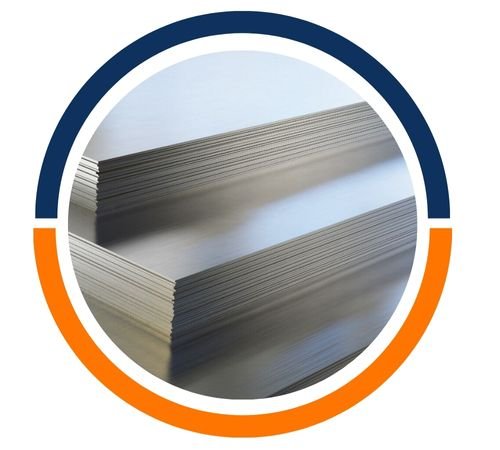

Aluminum 2017 Cold Rolled Sheets

Aluminium 2017 Clad Sheets Distributor in Nigeria, Al 2017 Perforated Plates Supplier in Abuja, Aluminium Alloy 2017 Sheet Weight Chart, Al 2017 Plates Exporter in Ibadan, Alumnium 2017 Polished Sheets Manufacturer in Lagos, Aluminium 2017 Shim Sheet and Plate Price List in Nigeria, Aluminium 2017 Chequered Plates Sizes in mm, Alumnium Alloy 2017 Hot Rolled Plate Distributor in Port Harcourt, Al 2017 Sheets and Plates Kano

Specifications of Aluminium 2017 Sheets and Plates

Standards : ASTM B209 / ASME SB209

Temper : O, T3,T4, T6, T651

Thickness : 0.2-250

Width : 100-2600

Length : 500-10000

Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.

Finish :Mill, Customer specific finish

Aluminum Sheet/ Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating

Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet

Chemical Compositions of Aluminium 2017 Sheets and Plates

Al	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Other Each	Other Total
Bal.	0.20-0.8	0.7 max	3.5-4.5	0.40-1.0	0.40-0.8	0.10 max	0.25 max	0.15 max	0.05 max	0.15 max

Mechanical Properties of Aluminium 2017 Sheets and Plates

Material	Condition	Tensile Strength (N/mm²) min		Yield Strength		Elongation in 4D %
		ksi	Mpa	ksi	Mpa
Al 2017	2017-T4 Bar	55	379	32	221	12

Get a Customized Quote for High-Quality Aluminium Products Tailored to Your Needs!

Types of Aluminium 2017 Sheets and Plates

Largest Aluminium 2017 Sheets and Plates Manufacturer and Exporter in Abuja, Nigeria

Nwab Aluminium based in Abuja, Nigeria is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.

Equivalent Grades of Aluminium 2017 Sheets and Plates

European Standard	OLD	WNr	UNS	ISO	USA (AA)	GERMANY (DIN)
AW-AlCu4MgSi	AU4G	3.1325	A92017	AlCu4SiMg	2017	AlCuMg1

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Sizes Chart Of Aluminium 2017 Sheets and Plates

Sizes (mm)	Theoretical Mass KG/Plate
2000 X 1000 X 0.5	2500 X 1250 X 0.5
2000 X 1000 X 0.7	2500 X 1250 X 0.7
2000 X 1000 X 0.9	2500 X 1250 X 0.9
2000 X 1000 X 1.2	2500 X 1250 X 1.2
3000 X 1500 X 1.2	2000 X 1000 X 1.6
2500 X 1250 X 1.6	3000 X 1500 X 1.6
2000 X 1000 X 2.0	2500 X 1250 X 2.0
3000 X 1500 X 2.0	2500 X 1250 X 2.5
2.79	4.36
3.91	6.10
5.02	7.85
6.74	10.46
15.01	8.93
13.95	20.09
11.16	17.44
25.11	21.80

Are Custom Sizes Available For Aluminium 2017 Sheets and Plates?

Yes, we offer custom sizes for Aluminium 2017 Sheets and Plates to meet specific project needs. Our team at Nwab Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@nwabalialuminium.com

Uses of Aluminium 2017 Sheets and Plates

The impressive strength of Aluminium 2017 sheets and plates makes them ideal for high-stress applications, particularly in the aerospace and defence industries for crafting aircraft components. Here in Abuja, you’ll find them used in heavy-duty parts for transportation, like truck frames and military vehicles, where their toughness is essential. They are also perfectly suited for manufacturing robust machinery components, high-strength structural parts in construction, and even various fittings and fixtures that must withstand significant wear and tear over time.
