Aluminium Sheets and Plates manufacturer in Nigeria

Aluminium Sheets Dealer in Lagos, Aluminium Hot Rolled (HR) Sheet & Plates Supplier in Lagos, Al Sheets in Port Harcourt, Alumnium Alloy Plates Size Chart, Aluminium Sheet Price in Kano, Alumnium Cold Rolled (CR) Sheet Supplier in Nigeria, Al Sheet Stockist in Ibadan, Aluminium Sheets and Plates Exporter in Nigeria, Al Sheet Stockist in Abuja, Alumnium Alloy Plates Supplier in Ibadan

Nwabali Aluminium has become a trusted name for businesses and builders across Abuja, providing a reliable source for high-quality aluminium sheets and plates. We understand that the success of your project, from a modern architectural facade to a durable industrial component, depends on the materials you use. That’s why we are committed to supplying products that meet rigorous standards, ensuring you get the strength, versatility, and longevity that aluminium is known for, backed by our local expertise and dependable service right here in Nigeria.

The composition of these sheets and plates is primarily high-grade aluminium, often alloyed with elements like magnesium and silicon to enhance their natural properties. This results in a material that boasts an excellent strength-to-weight ratio, meaning it’s surprisingly strong without being heavy. It’s naturally resistant to corrosion and highly malleable, allowing it to be easily formed and welded for various fabrication needs. This combination of durability and workability makes it an incredibly practical and efficient choice for a wide range of demanding applications.

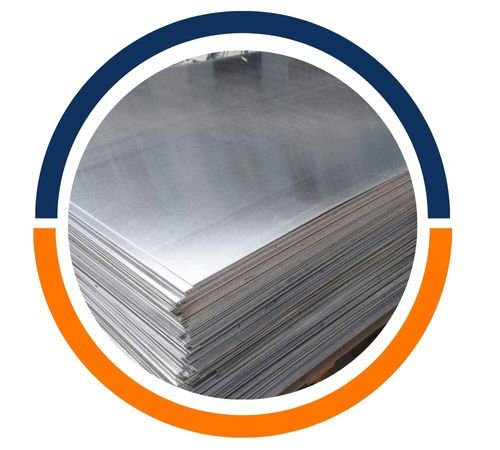

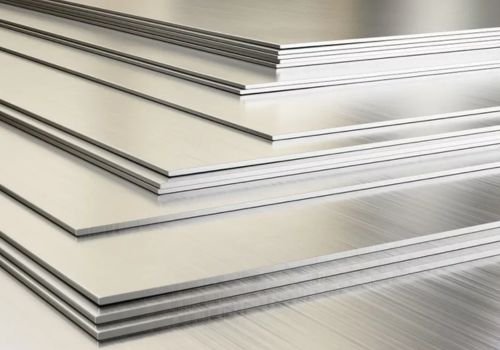

Aluminium Alloy Sheets

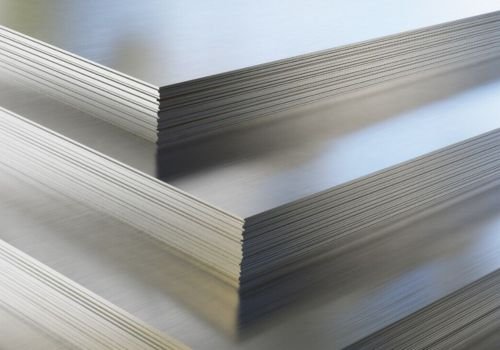

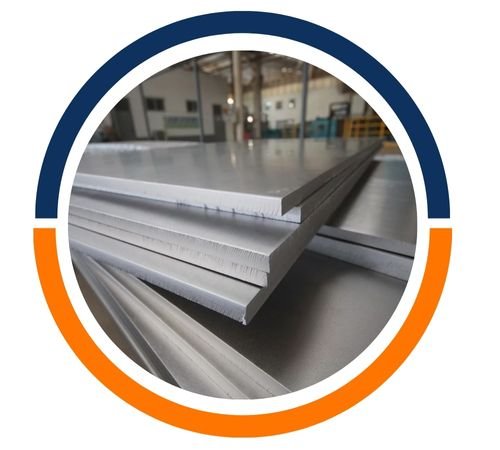

Aluminium Hot Rolled Sheets

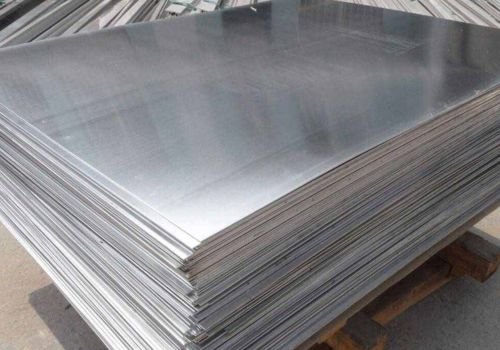

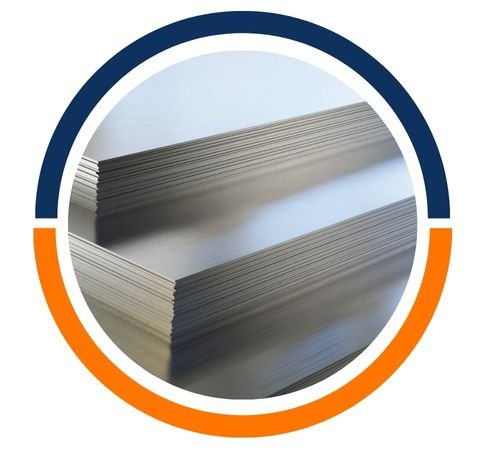

Aluminum Cold Rolled Sheets

Alumnium Clad Sheets Distributor in Nigeria, Al Perforated Plates Supplier in Abuja, Aluminium Alloy Sheet Weight Chart, Al Plates Exporter in Ibadan, Aluminium Polished Sheets Manufacturer in Lagos, Aluminium Shim Sheet and Plate Price List in Nigeria, Alumnium Chequered Plates Sizes in mm, Alumnium Alloy Hot Rolled Plate Distributor in Port Harcourt, Al Sheets and Plates Kano

Specifications of Aluminium Sheets and Plates

Specifications	ASTM / ASME SB209
Size	1000 mm x 60610 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 60610 mm x 60610 mm, 60610 mm x 4000 mm
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Thickness	0.1 to 12 mm Thk
Form	Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

Chemical Compositions of Aluminium Sheets and Plates

Alloy	% Si	% Cu	% Fe	% Mg	% Mn	% Cr	% Zn	% Ti	% Others	% Al
EN AW-1050 A	0.25 Maximum	0.05 Maximum	0.40 Maximum	0.05 Maximum	0.05 Maximum		0.07 Maximum	0.05 Maximum		99.5 Min
EN AW-1070 A	0.20 Maximum	0.03 Maximum	0.25 Maximum	0.03 Maximum	0.03 Maximum		0.07 Maximumimum	0.03 Maximum		99.7 Min
EN AW-1100	Si+Fe 0.95 Maximum	0.05 – 0.20			0.05 Maximum		0.10 Maximum	0.05 Maximum		99.0 Min
EN AW-2011	0.40 Max	5.00 – 6.00	0.70 Max				0.30 Max		Bi : 0.20 – 0.60 Pb : 0.20 – 0.60	Remainder
EN AW-2014	0.50 – 1.20	3.90 – 5.00	0.70 Max	0.20 – 0.80	0.40 – 1.20	0.10 Max	0.25 Max	0.15 Max		Remainder
EN AW-2024	0.50 Max	3.80 – 4.90	0.50 Max	1.20 -1.80	0.30 – 0.90	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	0.05 – 0.20	0.70 Max		1.00 – 1.50		0.10 Max		0.15 Max	Remainder
EN AW-3103	0.50 Maximum	0.10 Maximum	0.70 Maximum	0.30 Maximum	0.90 – 1.50	0.10 Maximum	0.20 Maximum	0.10 Maximum		Remainder
EN AW-6101A	0.30 – 0.7	0.05 Maximum	0.40 Maximum	0.40 – 0.90	0.03 Maximum				0.10 Maximum	Remainder
EN AW-6005	0.60 – 0.90	0.10 Max	0.35 Max	0.40 – 0.60	0.10 Max	0.10 Max	0.10 Max	0.10 Max		Remainder
EN AW-6351	0.70 – 1.30	0.10 Maximum	0.50 Maximum	0.40 – 0.80	0.40 – 0.80		0.20 Maximum	0.20 Maximum	0.15 Maximum	Remainder
EN AW-6060	0.30 – 0.60	0.10 Maximum	0.10 – 0.30	0.35 – 0.60	0.10 Maximum	0.05 Maximum	0.15 Maximum	0.10 Maximum		Remainder
EN AW-6061	0.40 – 0.80	0.15 – 0.40	0.70 Max	0.80 – 1.20	0.15 Max	0.04 – 0.35	0.25 Max	0.15 Max		Remainder
EN AW-6063	0.20 – 0.60	0.10 Max	0.35 Max	0.45 – 0.90	0.10 Max	0.10 Max	0.10 Max	0.10 Max		Remainder
EN AW-6082	0.70 – 1.30	0.10 Max	0.50 Max	0.60 -1.20	0.40 – 1.00	0.25 Max	0.20 Max	0.10 Max		Remainder

Mechanical Properties of Aluminium Sheets and Plates

Alloy	Temper	Yield Strength (Mpa)		UTS (Mpa)		Elongation (%)
		Minimum	Maximum	Minimum	Maximum	A 50mm (Minimum)
EN AW-1050 A Sheet	F	20		60		23
EN AW-1050 A Sheet	O	20		60	95	23
EN AW-1070 A	F	20		60		23
EN AW-1100	O			75	110	25
EN AW-2011 Sheet	T4	125		275		12
EN AW-2011 Sheet	T6	230		310		6
EN AW-2014	O		135		250	10
	T4	230		370		11
	T6	370		415		5
EN AW-2024 Perforated Sheet	O		150		250	10
	T3,T3510,T3511	290		395		6
	T8,T8510,T8511	380		455		4
EN AW-3003 Mesh Sheet	F	35		95		20
EN AW-3003 Mesh Sheet	O	35		95	135	20
EN AW-3103 Sheets	F	35		95		20
EN AW-3103 Sheets	O	35		95	135	20
EN AW-6101A Shim Sheet	T6	170		200		8
EN AW-6005 Sheet	T4	90		180		13
EN AW-6005 Sheet	T6	225		270		6
EN AW-6351 Sheet	O		110		160	12
	T4	110		205		12
	T6	250		290		6
EN AW-6060	T4	60	14	120		12
	T5	120		160		6
	T6	150		190		6
	T64	120		180		10
	T66	160		215		6
EN AW-6061	O		110		150	14
	T4	110		180		13
	T6	240		260		6
EN AW-6063	O				130	16
	T4	65		130		12
	T5	130		175		6
	T6	170		215		6
	T66	200		245		6
EN AW-6082	O		110		160	12
	T4	110		205		12
	T5	230		270		6
	T6	250		290		6

Get a Customized Quote for High-Quality Aluminium Products Tailored to Your Needs!

Types of Aluminium Sheets and Plates

Largest Aluminium Sheets and Plates Manufacturer and Exporter in Abuja, Nigeria

Nwab Aluminium based in Abuja, Nigeria is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.

Equivalent Grades of Aluminium Sheets and Plates

STANDARD	WERKSTOFF NR.	UNS
Aluminium	3.1254	A96082

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Sizes Chart Of Aluminium Sheets and Plates

AL Sheet Size (In Inches)		Roofing Sheet Size (In milimeter)
.125″	.875″	3.18	22.2
.134″	1″	3.40	25.4
.156″	1.125″	3.96	28.6
.187″	1.250″	4.75	31.8
.250″	1.500″	6.35	38.1
.312″	1.750″	7.92	44.5
.375″	2″	9.53	50.8
.500″	2.500″	12.7	63.5
.625″	3″	15.9	76.2
.750″		19.1

Are Custom Sizes Available For Aluminium Sheets and Plates?

Yes, we offer custom sizes for Aluminium Sheets and Plates to meet specific project needs. Our team at Nwab Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@nwabalialuminium.com

Uses of Aluminium Sheets and Plates

The uses for these aluminium sheets and plates are truly endless. In construction, they form the sleek cladding of modern buildings, durable roofing, and sturdy suspended ceilings. Manufacturers rely on them for everything from vehicle bodies and marine components to heavy-duty chemical tanks and food processing equipment. You’ll also find them in everyday items like durable signage, sleek kitchen appliances, and even aerospace parts. Their adaptability and resilience make them a fundamental material for innovation and durability in nearly every sector of industry and design.
