Nwabali Aluminium has become a trusted name for quality and reliability in Abuja’s construction and manufacturing sectors. As a leading local manufacturer and supplier, we pride ourselves on providing robust materials that meet the specific demands of Nigerian projects. Our supply of Aluminium 2017 Circles exemplifies this commitment, offering a high-strength solution for clients who require durability without compromising on precision. We understand the local market’s needs and are dedicated to ensuring our products contribute to building a stronger, more efficient future for our community.

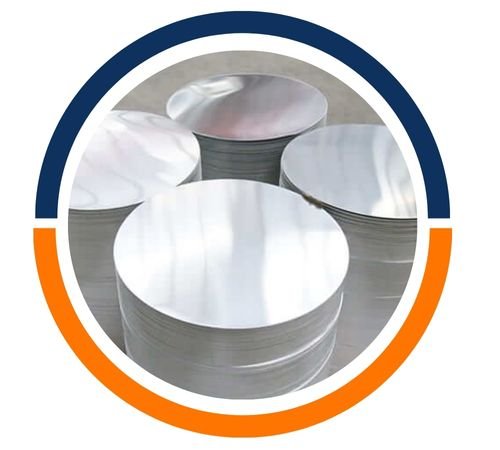

The Aluminium 2017 Circles we supply are known for their impressive strength, which comes from a specific composition primarily of copper. This alloy is part of the 2000 series, often referred to as duralumin, and it is a heat-treatable material. After undergoing specific aging processes, it develops exceptional mechanical properties, including a high tensile strength and good machinability. While it offers less resistance to corrosion compared to other series, its remarkable durability and ability to be precisely worked make it a preferred choice for high-stress applications where performance is critical.
| Specifications | ASTM B209 / ASME SB209 |
|---|---|
| Temper | O,H12,H14,H16,H18,H19,H22,H24 |
| Thickness | 1 Mm To 100 mm |
| Diameter | Upto 2000 mm |
| Circle Diameter | 3″ DIA up to 38″ DIA 1500 lbs max |
| Circles Form | Hot Rolled Circles, Cold Rolled Circle, Proof Machined Circles |
| Finish | Mill, Customer specific finish |
| Aluminum Circle Coating | PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating |
| Al | Si | Mg | Cr | Zn | Fe | Cu | Mn | Ti | Other Each | Other Total |
| Bal. | 0.20-0.8 | 0.40-0.8 | 0.10 max | 0.25 max | 0.7 max | 3.5-4.5 | 0.40-1.0 | 0.15 max | 0.05 max | 0.15 max |
| Material | Tensile Strength (N/mm²) min | Yield Strength | Elongation in 4D % | ||
| ksi | Mpa | ksi | Mpa | ||
| Al 2017 | 55 | 379 | 32 | 221 | 12 |
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
|---|---|---|---|---|---|---|
| AW-AlCu4MgSi | AU4G | 3.1325 | A92017 | AlCu4SiMg | 2017 | AlCuMg1 |
Nwab Aluminium based in Abuja, Nigeria is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 2017 Circles to meet specific project needs. Our team at Nwab Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@nwabalialuminium.com
The uses for these high-strength circles are extensive, particularly in industries where performance under pressure is non-negotiable. They are perfectly suited for aerospace components, heavy-duty truck parts, and critical automotive fittings like pistons and wheels. In the manufacturing world, they are the go-to material for creating durable machinery parts, gears, and even high-performance sporting equipment. For any project in Abuja that demands a material capable of withstanding significant stress and wear, Aluminium 2017 Circles provide a reliable and effective solution that ensures longevity and optimal function.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
