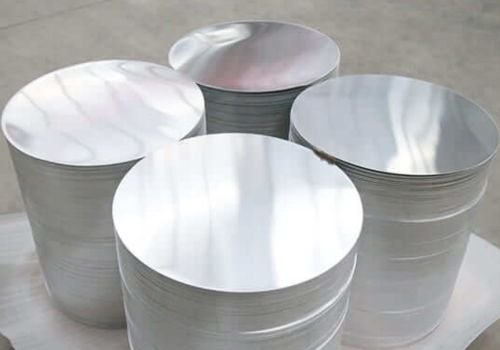

In the heart of Nigeria’s bustling capital, Nwabali Aluminium stands as a trusted pillar for industry, providing robust and reliable materials to a growing nation. We specialize in sourcing and supplying high-grade aluminium, with a particular focus on meeting the precise demands of local manufacturers and engineers. Our commitment is to empower Abuja’s development with quality products, and our stock of Aluminium 2014 Circles exemplifies this dedication, offering a superior solution for applications where strength and durability are absolutely essential.
The Aluminium 2014 Circles we supply are part of the high-strength 2000 series, primarily composed of copper as its key alloying element. This specific composition gives the material its notable mechanical properties, including a very high strength-to-weight ratio and impressive hardness. It is known for its excellent machinability, allowing it to be precisely shaped and worked into complex components. While it offers good fatigue resistance, its welding capabilities can be challenging, making it a material best suited for specific, high-performance applications.
| Specifications | ASTM B209 / ASME SB209 |
|---|---|
| Temper | O,H12,H14,H16,H18,H19,H22,H24 |
| Thickness | 1 Mm To 100 mm |
| Diameter | Upto 2000 mm |
| Circle Diameter | 3″ DIA up to 38″ DIA 1500 lbs max |

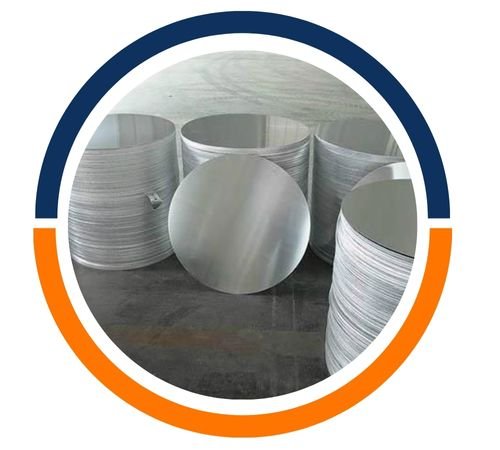

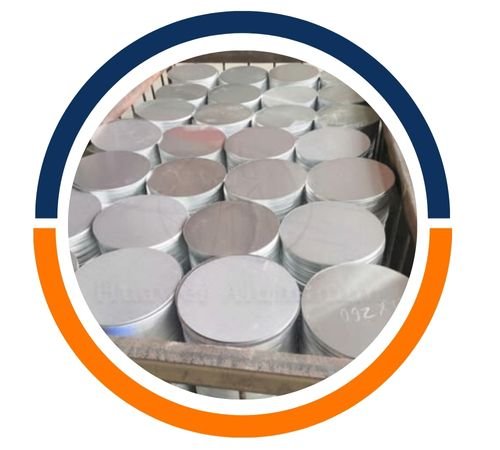

| Circles Form | Hot Rolled Circles, Cold Rolled Circle, Proof Machined Circles |
| Finish | Mill, Customer specific finish |
| Aluminum Circle Coating | PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating |
| Alloy | Si | Fe | Cu | Zn | Mn | Mg | Ti | Other | Cr | Ni | Others | Ti+Zr | Al |
| 2014 (min) (max) | 0.50 – 0.90 | 0.0 – 0.50 | 3.90 – 5.00 | 0.0 – 0.25 | 0.40 – 1.20 | 0.20 – 0.80 | 0.0 – 0.15 | 0.0 – 0.15 | 0.0 – 0.10 | 0.0 – 0.10 | 0.0 – 0.05 | 0.0 – 0.20 | Balance |
| Alloy | Temper | UTS (Mpa) | Yield Strength (Mpa) | Elongation (%) | ||
| – | – | Minimum | Maximum | Minimum | Maximum | A 50mm (Minimum) |
| EN AW-2014 | O | – | 250 | – | 135 | 10 |
| T4 | 370 | – | 230 | – | 11 | |
| European Standard | BS (OLD) | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) | IS | Canadian |
|---|---|---|---|---|---|---|---|---|
| EN AW-2014 | HE15 | 3.1255 | A92014 | AlCu4SiMg | 2014 | AlCuSiMn | 24345 | B26S |
Nwab Aluminium based in Abuja, Nigeria is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 2014 Circles to meet specific project needs. Our team at Nwab Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@nwabalialuminium.com
The remarkable strength of Aluminium 2014 Circles makes them indispensable for demanding sectors. You will commonly find them used in the aerospace industry for aircraft components like fuselage frames and wing ribs. Beyond the skies, they are crucial in the automotive world for high-stress parts such as pistons and gearboxes. They also serve in heavy-duty machinery, architectural structures requiring exceptional durability, and even in the fabrication of high-performance sporting equipment. Essentially, wherever a component must be both lightweight and incredibly strong, this alloy is a prime candidate.
