Nwabali Aluminium stands out as a top-notch manufacturer and supplier of high-quality Aluminium 1050 Bars in Abuja, Nigeria. Known for its dedication to excellence, the company provides durable, corrosion-resistant, and high-performance aluminium products tailored to meet both industrial and commercial demands. With cutting-edge production facilities and a talented workforce, Nwabali Aluminium guarantees that each bar adheres to global quality standards and fulfills customer specifications. The company caters to a variety of industries, including construction, automotive, electrical, and engineering, offering reliable and cost-effective aluminium solutions that endure the test of time across Nigeria and beyond.

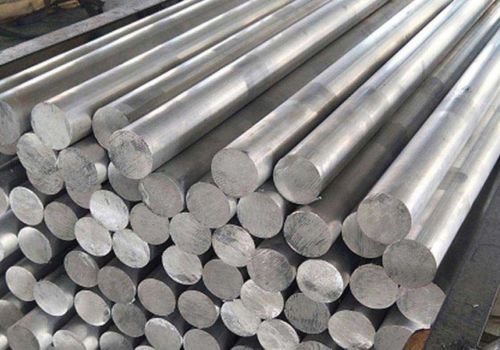

The Aluminium 1050 Bars crafted by Nwabali Aluminium contain around 99.5% pure aluminium, with minor additions of elements like silicon, iron, copper, manganese, and zinc. This high-purity alloy boasts excellent corrosion resistance, outstanding electrical and thermal conductivity, and good workability. While Aluminium 1050 may have lower strength compared to other alloys, it shines in terms of ductility and formability, making it perfect for cold working processes. Typically, its mechanical properties include a tensile strength ranging from 60 to 100 MPa and an elongation of up to 35%, depending on the temper and processing conditions.
Standards : ASTM B221, B211, B565, B316, AMS 4121 2014
Temper : O
Standard : ASTM, ASME, AMS, GB/T, JIS
Length : 1000-6000
Diameter : 6-150
Finish : Bright, Polish & Black
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
| Alloy (ISS) | Equivalent alloy (A.A) | Copper | Magnesium | Silicon | Iron | Managanese Others* (Total) | Remarks | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Old | New | U.S.A | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Max | Max. | Aluminum 99.0% Min. | ||
| 1 B | 19500 | 1050 | — | 0.05 | — | — | — | 0.30 | 0.4 | — | 0.05 | 0.1 | Aluminum 99.5% Min. | ||
| Alloy | Temper | UTS (Mpa) | Yield Strength (Mpa) | Elongation (%) | ||
|---|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | Maximum | A 50mm (Minimum) | ||
| EN AW-1050 A | F | 60 | – | 20 | – | 23 |
| O | 60 | 95 | 20 | – | 23 | |
| European Standard | BS (OLD) | USA (AA) | GERMANY (DIN) | ISO | IS | Canadian |
|---|---|---|---|---|---|---|
| EN AW-1050 A | 1E | 1050 | Al99.5 | Al99.5 | 19500, 19501 | 1 S |
Nwab Aluminium based in Abuja, Nigeria is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
| Diameter | Weight |
|---|---|
| 6 mm | 0,076 Kg/m |
| 7 mm | 0,104 Kg/m |
| 8 mm | 0,136 Kg/m |
| 9 mm | 0,172 Kg/m |
| 9,5 mm | 0,191 Kg/m |
| 10 mm | 0,212 Kg/m |
| 11 mm | 0,257 Kg/m |
| 12 mm | 0,305 Kg/m |
| 12,5 mm | 0,331 Kg/m |
| 13 mm | 0,358 Kg/m |
| 14 mm | 0,416 Kg/m |
| 16 mm | 0,543 Kg/m |
| 16,5 mm | 0,577 Kg/m |
| 18 mm | 0,687 Kg/m |
| 19 mm | 0,766 Kg/m |
| 20 mm | 0,848 Kg/m |
| 22 mm | 1,026 Kg/m |
| 25 mm | 1,325 Kg/m |
| 28 mm | 1,663 Kg/m |
| 30 mm | 1,909 Kg/m |
| 31 mm | 2,038 Kg/m |
| 32 mm | 2,171 Kg/m |
| 35 mm | 2,598 Kg/m |
| 38 mm | 3,062 Kg/m |
| 40 mm | 3,393 Kg/m |
| 45 mm | 4,294 Kg/m |
| 50 mm | 5,301 Kg/m |
| 55 mm | 6,415 Kg/m |
| 60 mm | 7,634 Kg/m |
| 65 mm | 8,959 Kg/m |
| 70 mm | 10,391 Kg/m |
| 75 mm | 11,928 Kg/m |
| 80 mm | 13,572 Kg/m |
| 90 mm | 17,177 Kg/m |
| 100 mm | 21,206 Kg/m |
| 105 mm | 23,379 Kg/m |
| 110 mm | 25,659 Kg/m |
| 120 mm | 30,536 Kg/m |
| 127 mm | 34,203 Kg/m |
| 130 mm | 35,838 Kg/m |
| 140 mm | 41,563 Kg/m |
| 150 mm | 47,713 Kg/m |
| 180 mm | 68,707 Kg/m |
| 200 mm | 84,823 Kg/m |
Yes, we offer custom sizes for Aluminium 1050 Bars to meet specific project needs. Our team at Nwab Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@nwabalialuminium.com
Nwabali Aluminium’s 1050 Bars are widely appreciated across various industries for their versatility and performance. In the electrical sector, they are perfect for bus bars, conductors, and cable sheathing thanks to their excellent conductivity. In construction, they find their place in decorative trims, facades, and architectural frameworks. The automotive and transportation sectors utilize them for lightweight body panels and heat exchangers, enhancing fuel efficiency. Moreover, Aluminium 1050 Bars are essential in chemical and food processing equipment where corrosion resistance is crucial. Their formability makes them ideal for fabrication, machining, and general engineering applications throughout Nigeria’s expanding industrial landscape.
